    Meteor Hydrofoil Boat – Project 342E

    Meteor Hydrofoil Boat – Project 342E

    Meteor Hydrofoil Boat – Project 342E

    Dimensions

    Length Overall (LOA)

    34.6 m

    Breadth Overall (BOA)

    9.50 m

    Depth (Moulded Depth)

    6.78 m

    Draft (Design Draft)

    1.20 m

    Displacement

    53.4 t

    Capacity

    Passenger and Crew Capacity

    3 + 123 persons

    Propulsion System

    Maximum Speed

    65 km/h

    Main Engines

    2 x 1100 hp

    Propulsors

    1 x Variable-Pitch Propeller

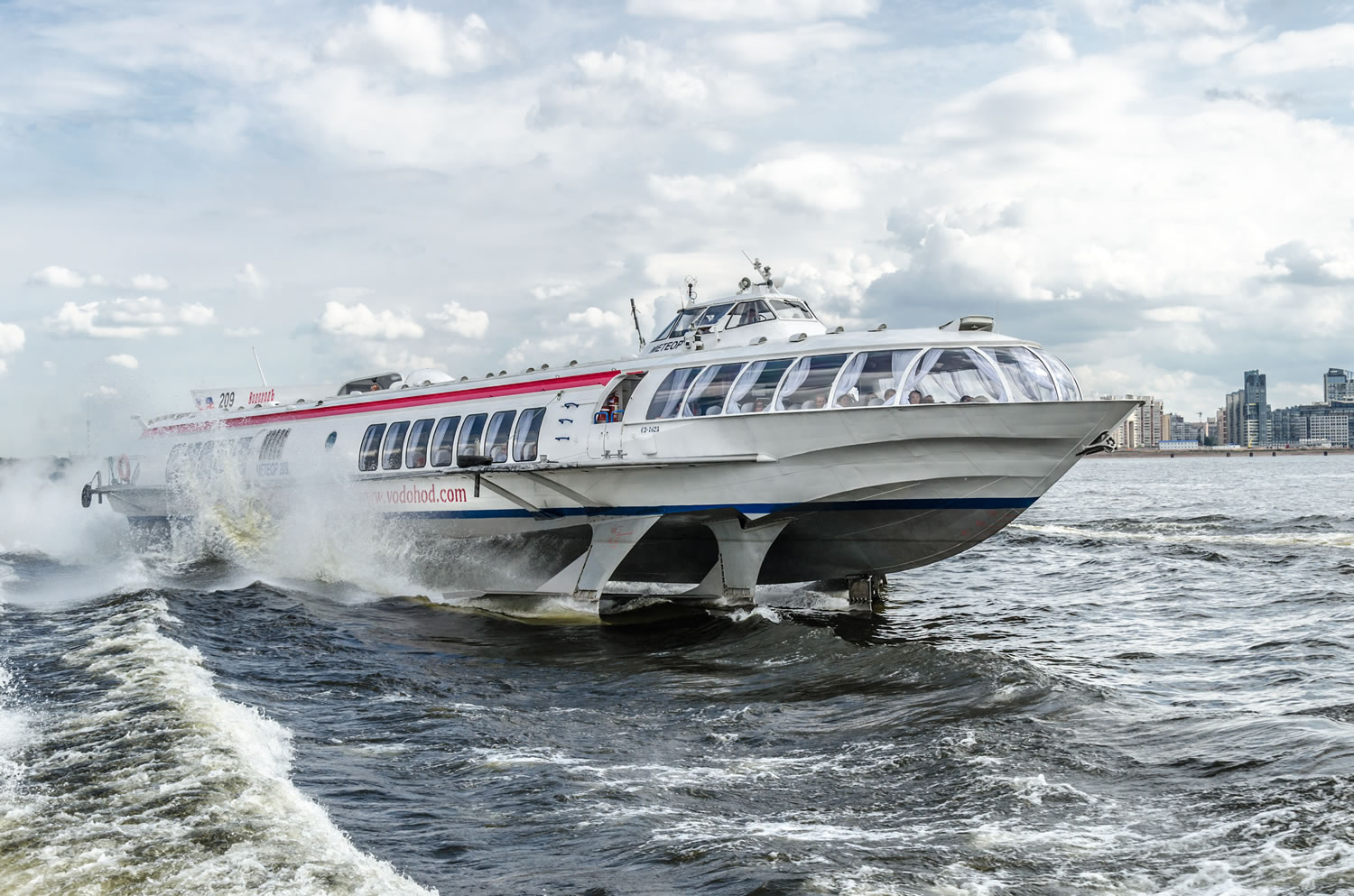

    Meteor hydrofoil boat is a duralumin, diesel, single-deck, twin-shaft, hydrofoil boat developed for high-speed passenger transportation in daylight hours on navigable rivers and freshwater lakes and reservoirs in the mild climate areas.

    The project was developed by the R.E. Alekseev Central Design Bureau for Hydrofoil Boats

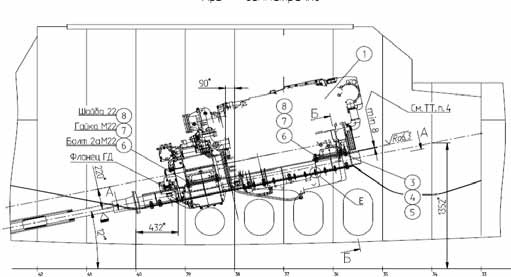

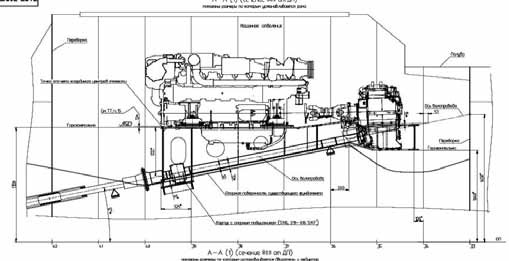

    The retrofit package consists of:

    • main engines MAN D2842LE410 with a capacity of 1100 hp and installation of reverse-reduction gear ZF2000V;
    • engine monitoring and control system;
    • linkage adaptor;
    • intermediate shafts and plummer block bearing;
    • modernization project approved by the River Register.

    Options:

    • propeller shafts and propellers;
    • renovation of compartments;
    • installation of the HVAC system;
    • installation of auxiliary 220V diesel generator;
    • installation of navigation equipment

    Retrofitted vessels: Meteor-115, Meteor-1482, Meteor-237
